SUNGMUN QSR-10S SMD Rotary DIP Switch | IP67 Waterproof | 10 Position | 10x10mm

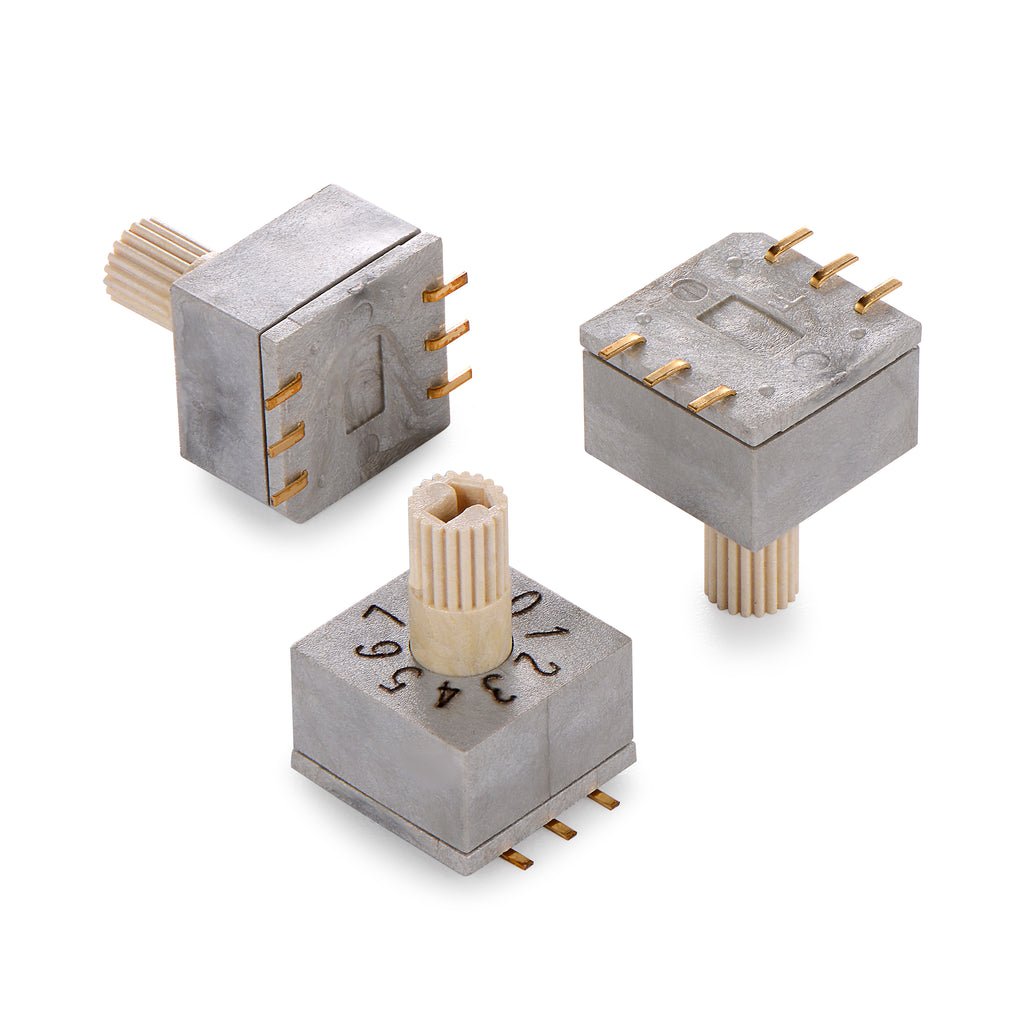

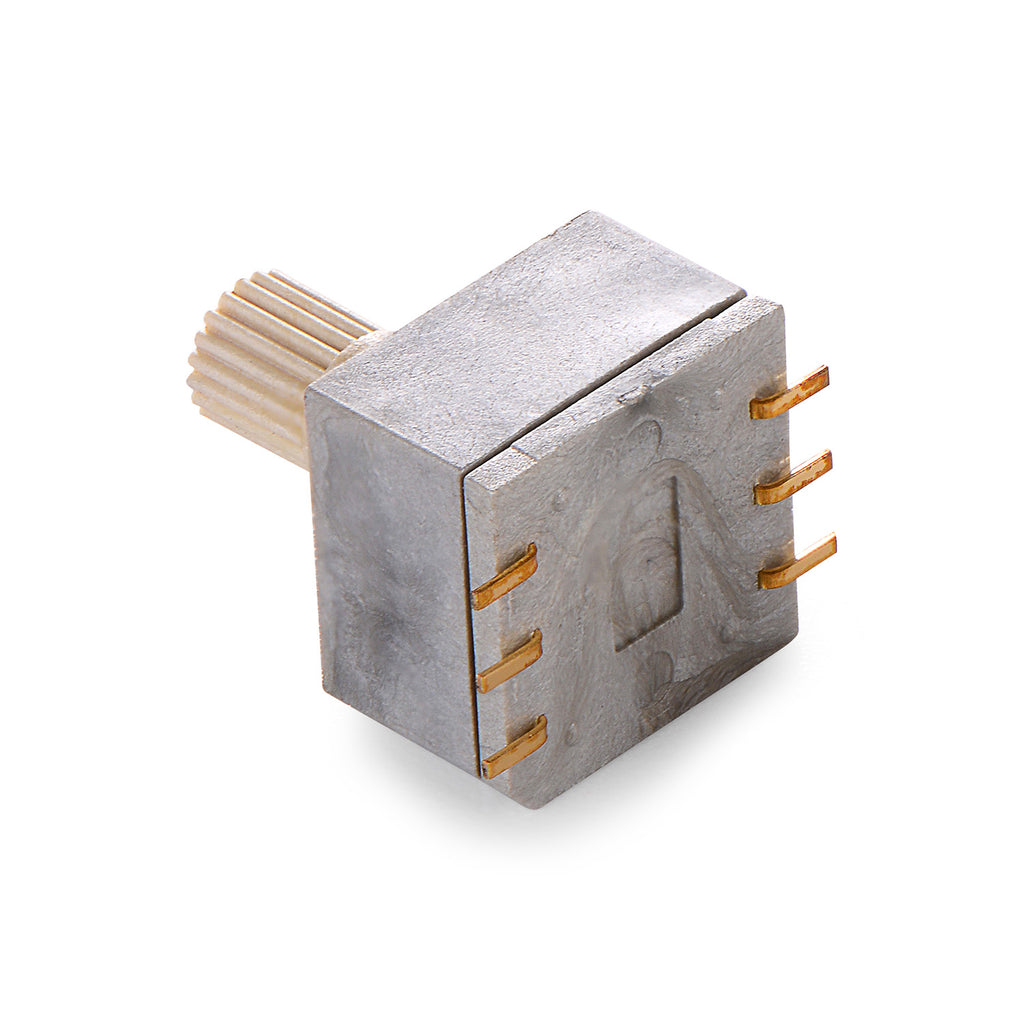

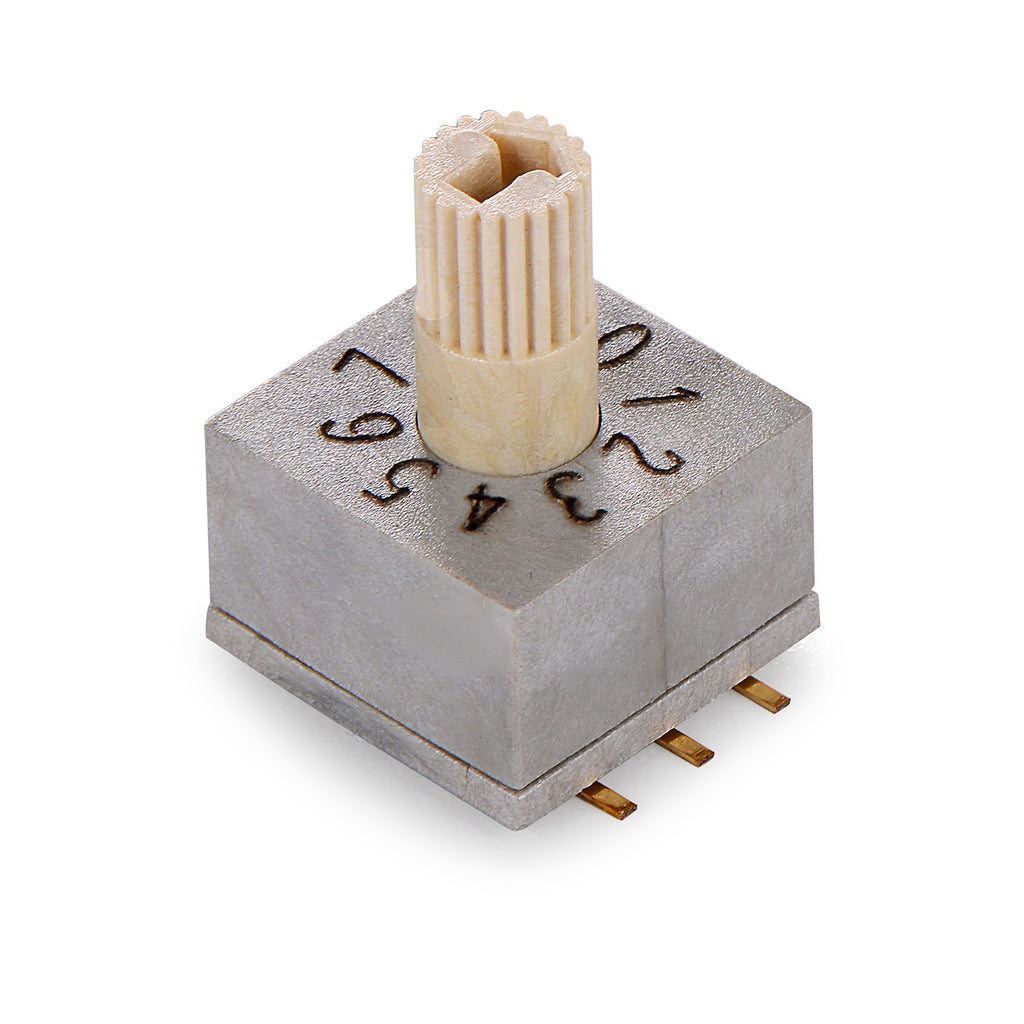

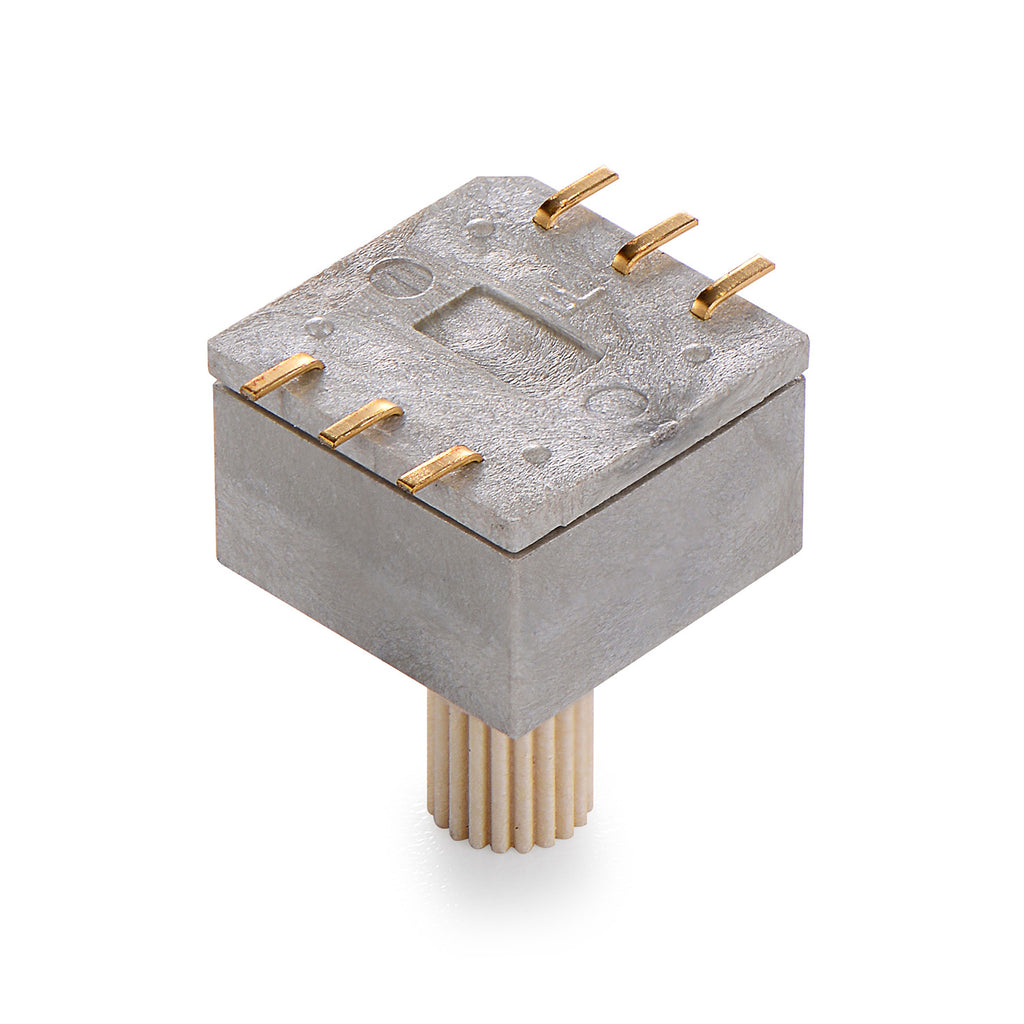

SUNGMUN QSR-10S SMD Rotary DIP Switch
A 10x10mm, 10-position SMD (Surface Mount Device) rotary DIP switch with full IP67 waterproof and dustproof rating. It features a 6-pin gull-wing terminal, a 7.3mm actuator shaft, and is available in tape & reel packaging for automated assembly.

Key Specifications:

Rating: 150mA @ 42V DC (Switching)

Contact Resistance: ≤80mΩ

Insulation Resistance: ≥100MΩ @ 250V DC

Operating Force: ≤700gf

Life Cycle: 10,000 cycles

Sealing: IP67 (Dust & Water proof)

Packaging: 50pcs/Tube, 600pcs/Reel

Designed for modern, high-efficiency PCB production, this switch is ideal for applications requiring both environmental protection and automated soldering processes, such as in automotive electronics, industrial controls, and telecommunications equipment.
